Using ZXing in the SAP HANA Cloud Platform to generate QRcodes

Using ZXing in the SAPHCP to generate QRcodes

By Robert Russell

Download my EAR file from this link

My SCN blog with background information about the EAR file.

http://scn.sap.com/people/robert.russell/blog/2010/11/08/generating-qr-codes-with-a-zebra-crossing-in-the-java-stack

Unzip the downloaded ear file

unzip QRplutusEA.ear

Archive:  QRplutusEA.ear

 inflating: META-INF/MANIFEST.MF

 inflating: META-INF/SAP_MANIFEST.MF

 inflating: META-INF/sda-dd.xml

warning:  stripped absolute path spec from /

mapname:  conversion of  failed

 inflating: META-INF/application-j2ee-engine.xml

 inflating: META-INF/application.xml

 inflating: QRplutus.war

The QRplutus.war file will be in the same directory.

Start Eclipse and import the QRplutus.war file

I changed the Web project name & chose Java Web Tomcat 7 runtime

Left core.jar unselected as it is only required in the WEB-INF/lib directory in my use case

Updated the QRcode.jsp file to reflect the new web project name.

Before

After

Updated the QRcodeHCP as my chosen project name

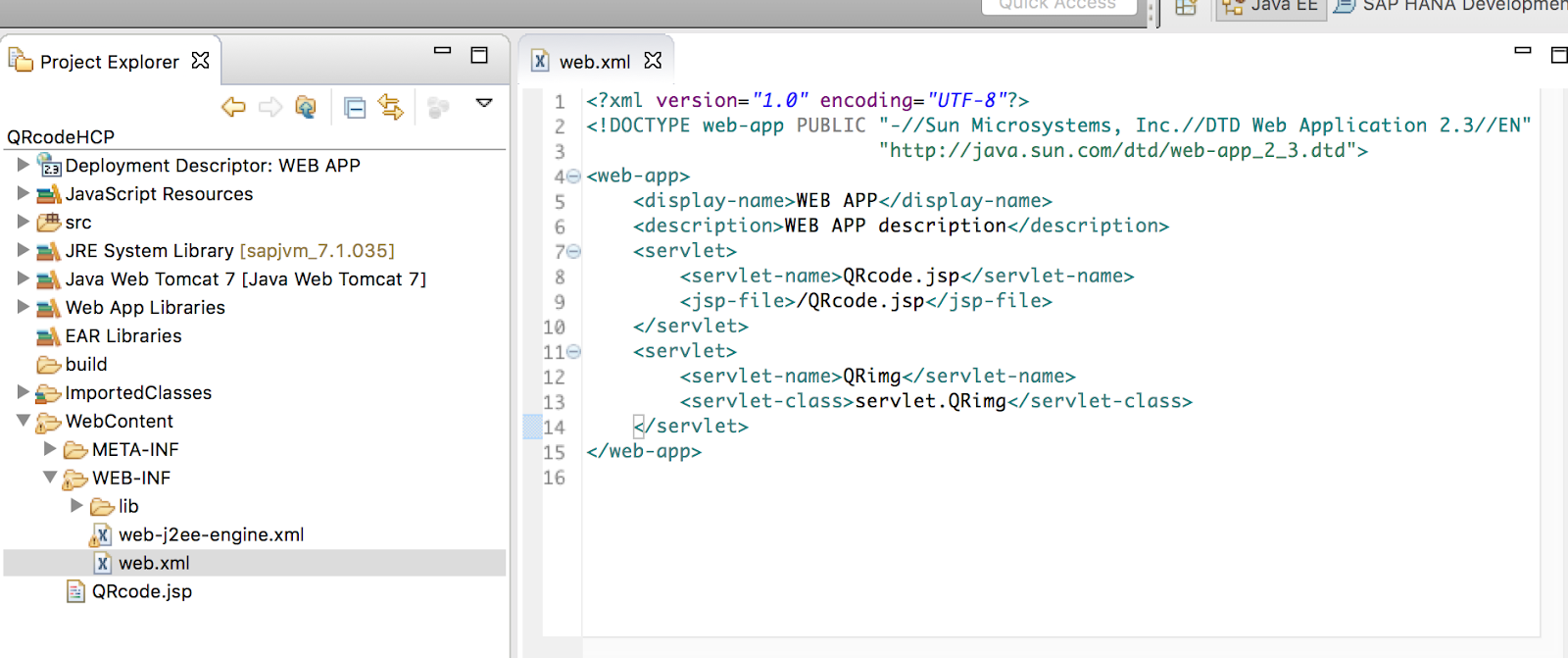

Update the web.xml file to map the servlet

Before

Add the following lines after the last </servlet> tag

<servlet-mapping>

<servlet-name>QRimg</servlet-name>

<url-pattern>/servlet/QRimg</url-pattern>

</servlet-mapping>

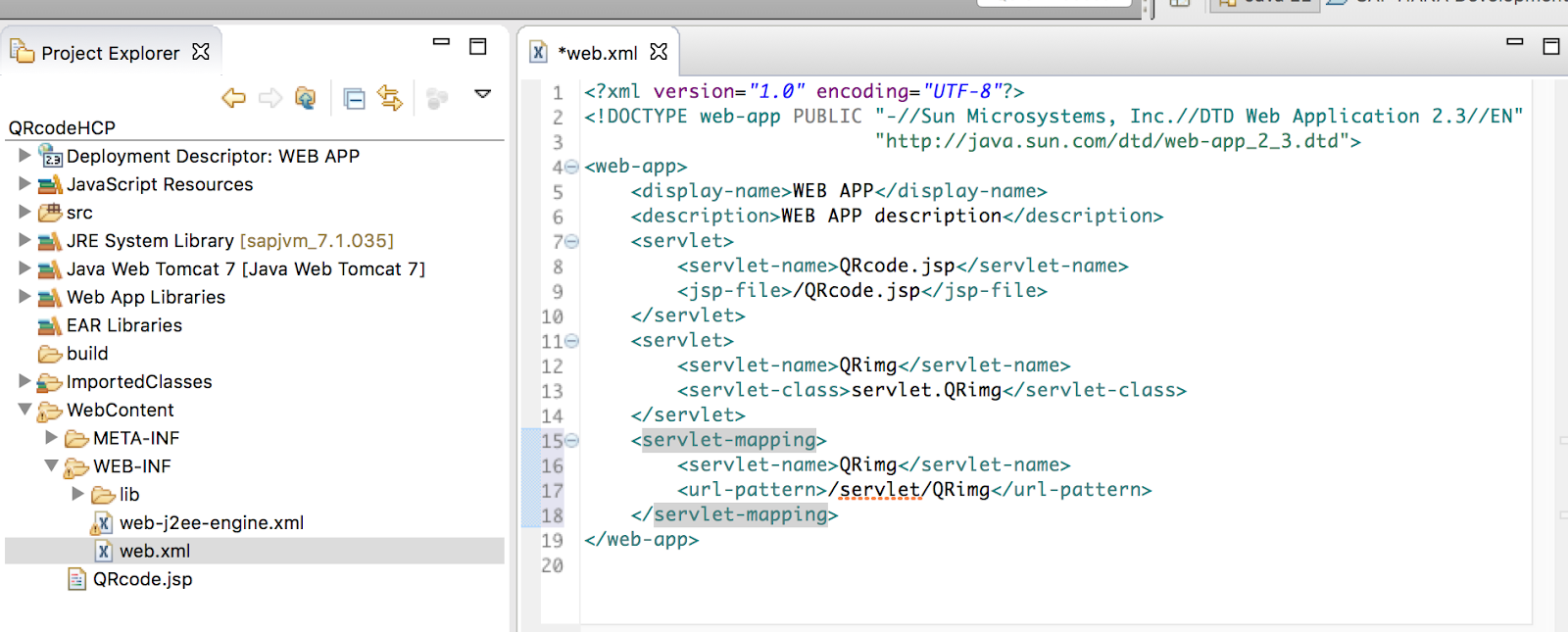

Should look like the following

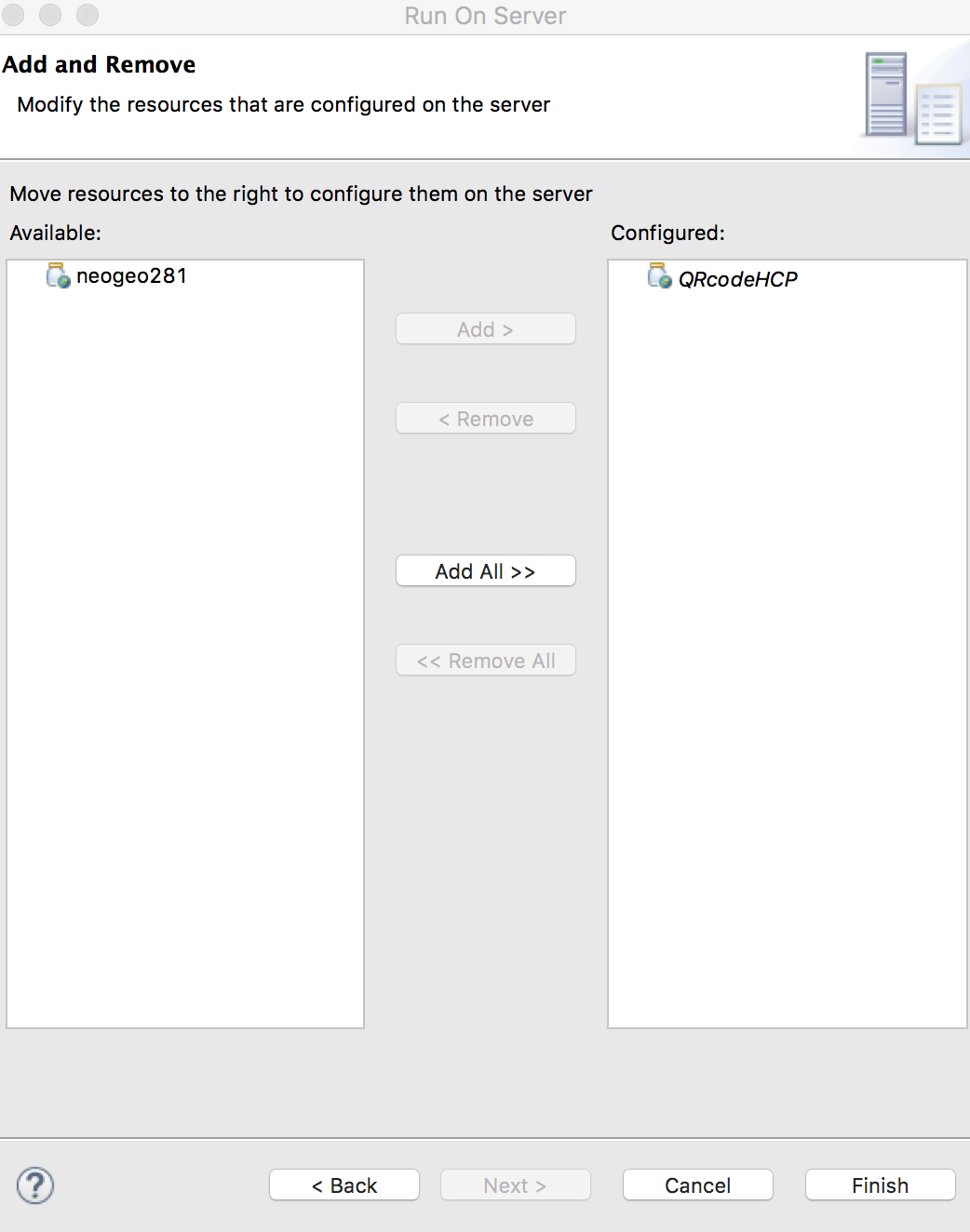

Deploy to a local server

Finish,

In the web browser enter the following (changing the project name if required)

http://localhost:8080/QRcodeHCP/QRcode.jsp?t=test&w=200&h=200

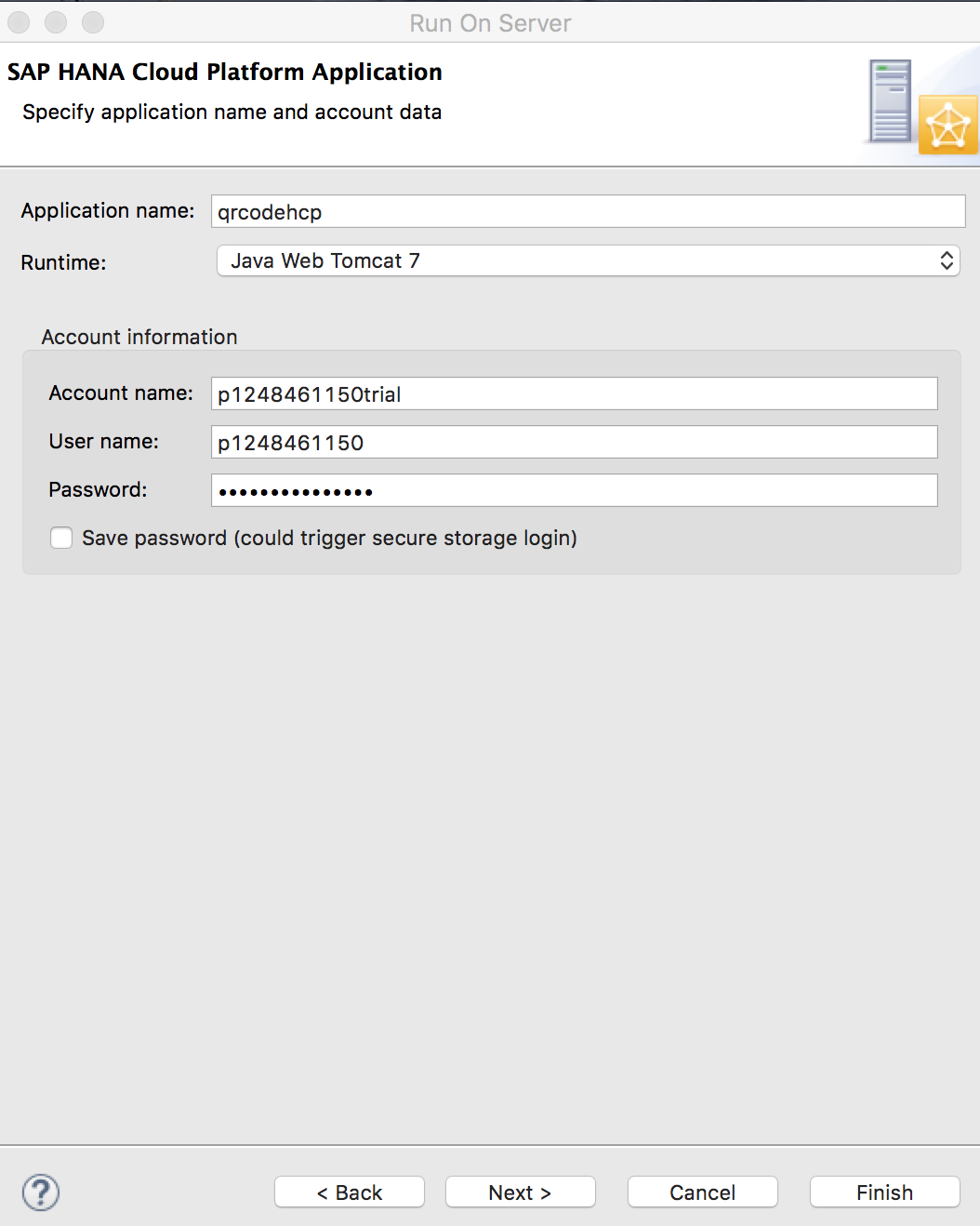

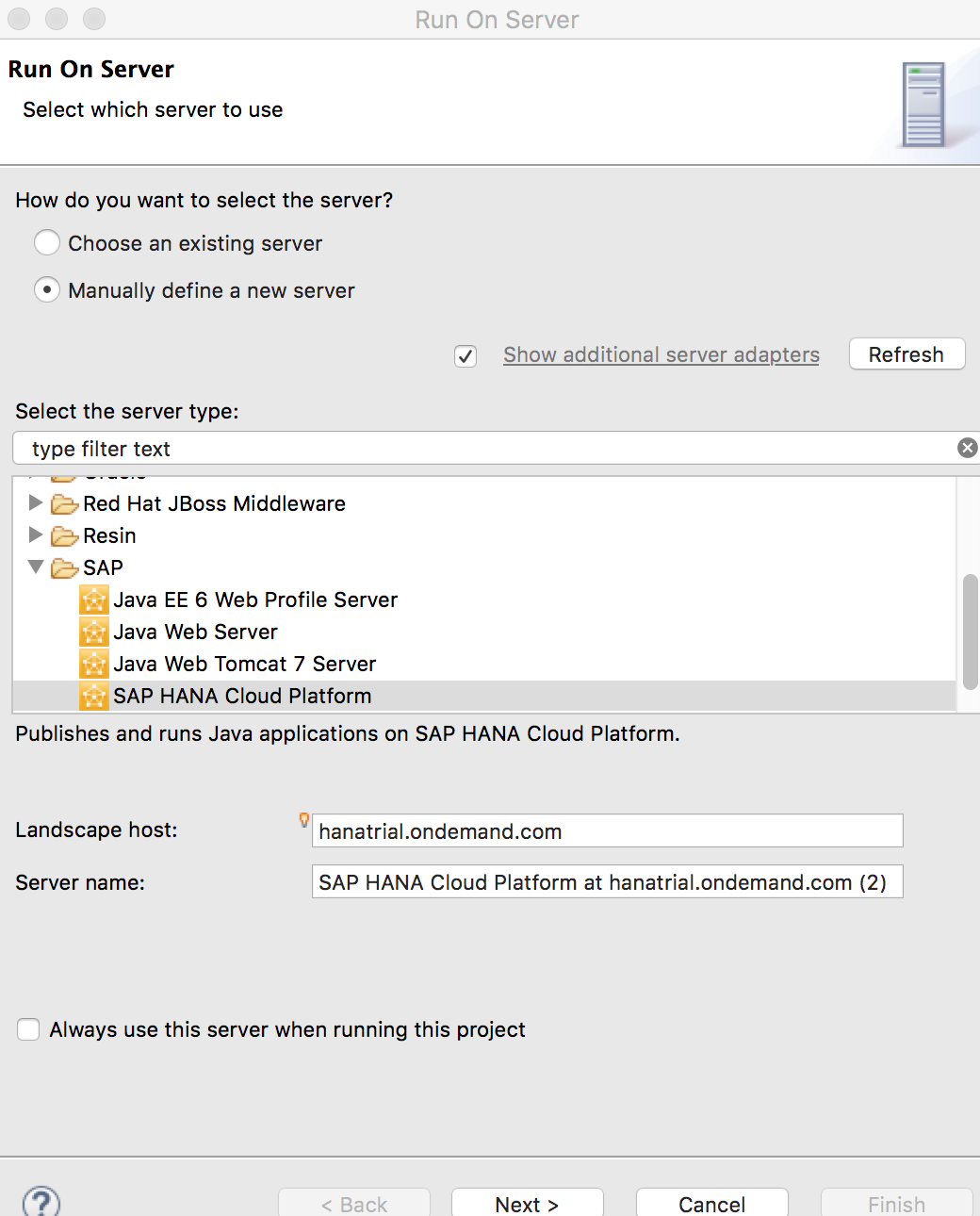

Deploy to HCP

Finish

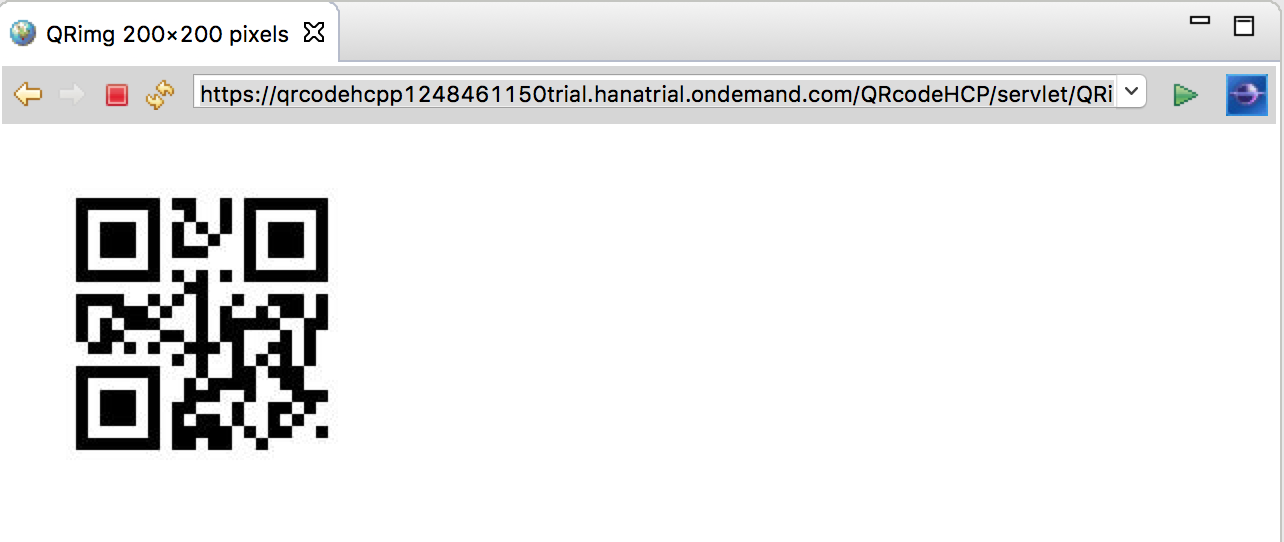

QRcode.jsp?t=test&w=200&h=200
